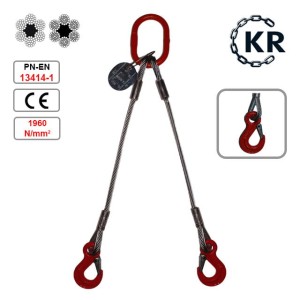

2-leg rope sling with hooks

2-leg wire rope sling with hooks at the ends

Diameters 3mm - 7mm: Galvanized steel rope - 6x19, FC, 1960 N/mm2
Diameters 8mm - 28mm: Galvanized steel rope - 6x39, FC, 1960 N/mm2
with the EN 13414-1 standard - certificate on the pendant attached to the collective link.
Each sling comes with a certificate of compliance EN 10204 2.1

Technical data:

• Diameter: 3 mm - 28 mm

• Length: to choose from
• WLL (WLL): 130 kg - 11800 kg

• Safety factor: approx. 6:1
• Sling standard: EN 13414-1
• Rope construction: 3-7mm - 6x19, 8-28mm - 6x36

• Rope core: FC - fiber
• Rope lay direction: sZ - right counter-lay
• Rope standard: EN 12385-4

• Strength class: 1960 N/mm2
• Surface: galvanized
• Cell: type and dimensions given in the table below

• Ends: Hooks
  type and dimensions of hooks are given in the table below

• Weight: given in the table below


Rope construction:

Designation of the working length of the sling:

Item description:

• Sling made of galvanized steel rope class 1960 N/mm2 with a fiber core.
• The working load limit (WLL) of the sling and the standard are stamped on the tag attached to the master link.
• The working strength of the sling in accordance with the EN 13414-1 standard is calculated for ropes in class 1770 N/mm2 the use of ropes in class 1960 N/mm2 increases the actual breaking strength, i.e. increases the safety factor.
• All slings are manufactured in-house - we can produce any sling,
  with any number of strands and various terminations.

Weight of slings (weight of rope x length of both strands + weight of ends):

Cell parameters:

Hook parameters:
