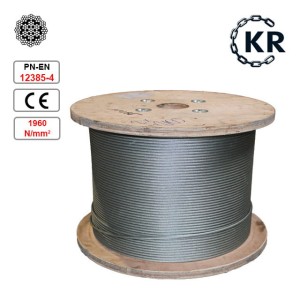

Non-rotating rope 19x7 (18x7 WSC)

Non-rotating steel rope - 19x7 (18x7 WSC)

Galvanized rope, 19x7 (18x7 WSC), 1960 N/mm2, sZ, according to EN 12385-4, Table 14 (DIN 3069)

Technical data:

• Diameter: 3 -12 mm
• Length: to choose from
• Construction: 19x7 (18x7 WSC)
• Core: WSC - steel
• Coil direction: sZ - right anticoil
• Standard: EN 12385-4, Table 14
• Strength: selectable (0.59t - 9.44t)
• Strength class: 1960 N/mm2
• Surface: galvanized, lubricated
• Weight: given in the table below

Item description:

• Multi-strand, non-rotating rope - overhead crane rope
• Standard in the group of non-rotating ropes for diameters up to 10 mm
• The multi-strand construction ensures very high flexibility and excellent operating performance with long service life.
• The larger external contact surface compared to classic ropes provides greater abrasion resistance.
• The steel core ensures high crush resistance and increased durability - the rope does not crush when wound on the drum
• Rope made of steel with increased strength class - 1960 N/mm2
• The ideal lifting rope - where resistance to twisting (rotation) is an advantage

Technical parameters
(weight = rope weight x length):
