Steel rope galv. 6x36 IWRC

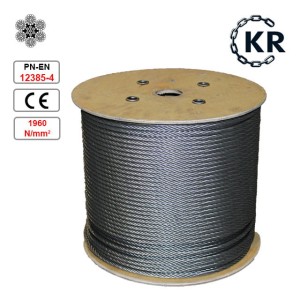

Galvanized steel rope - 6x36 IWRC

Galvanized rope, 6x36 WS, IWRC, 1960 N/mm2, sZ, according to EN 12385-4, Table 9 (DIN 3064)

Technical data:

• Diameter: 8 -26 mm
• Length: to choose from
• Construction: 6x36
• Core: IWRC - steel
• Coil direction: sZ - right anticoil
• Standard: EN 12385-4, Table 9
• Strength: to choose from (4.6t - 48.1t)
• Strength class: 1960 N/mm2
• Surface: galvanized
• Weight: given in the table below

Item description:

• The most flexible and durable of the 6-strand (non-compacted) ropes. The 6x36 Warrington-Seale strand provides a very large metallic cross-sectional area, which translates into high rope strength while maintaining high flexibility.
• The rope is recommended for all types of electric and mechanical winches - high flexibility allows the rope to be wound on small diameter drums, and the steel core protects the rope from crushing on the lower layers.
• The steel core protects the rope from being crushed on the winch drum, ensuring a longer rope life.
• High-class galvanization (class B) ensures long-term non-rusting of the rope.
• High-grade steel (1960 N/mm2) protects the rope against rapid abrasion and ensures high breaking strength.
• Different thicknesses of wires in the strand (WS construction - thick wires on the outside and thin wires on the inside) increase the rope's resistance to abrasion while increasing its flexibility.
• Anti-coil rope - does not require the use of a swivel.

Technical parameters
(weight = rope weight x length):
