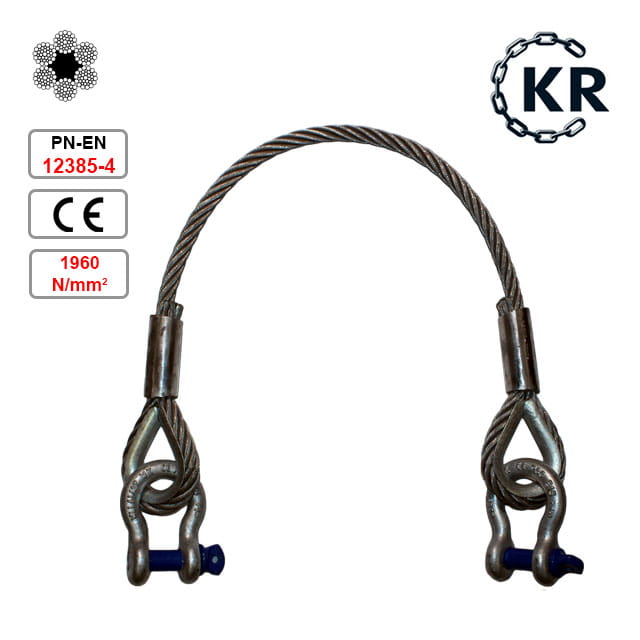

Tow rope with shackles - FC

Steel towing rope with shackles on both ends.

Galvanized steel rope - 6x36 WS FC, sZ, 1960 N/mm2 according to EN 12385-4, Table 9 (DIN 3064)

MBL - minimum breaking load

Technical data:

• Diameter: 8-28 mm
• Length: to choose from (length measured from shackle to shackle)
• Construction: 6x36
• Core: FC - fiber
• Coil direction: sZ - right anticoil
• Standard: EN 12385-4, Table 9
• MBL breaking strength: selectable
• Strength class: 1960 N/mm2
• Recommended working strength (pulling): max 75% MBL
• Surface: galvanized
• Ends: Shackle-Shackle
  type and dimensions of shackle given in the table below
• Set standard: EN 13414-1 - stamped on the clamp
• Weight: given in the table below

The rope is also subject to the standard PN-EN 13414-1 - "Steel rope slings"

Item description:

• 6-strand rope with fiber core (flexible and strong)
• Ends: thimbles with shackles pressed with aluminum clamps EN 13411-3 (end efficiency approx. 100%)
• Galvanized rope, high galvanization class "B" ensures long-term rust resistance
• High-grade steel (1960 N/mm²) protects the rope against rapid abrasion and ensures high durability

Technical parameters
(rope weight x length + weight of ends):

Shackle dimensions:
